IP/MAC Management & Network Security
Centralized IP/MAC management, Agentless network access control, Built-in advanced DHCP server
Integrated All-In-One Solution
An all-in-one hardware integrated solution will reduce your initial investment by offering a multi-functional solution at low cost, as well as streamlined installations, minimizing a manager's workload.
Automating routine workloads of manual IP address administration using a light-weight, versatile and powerful SmartIP will dramatically enhance your efficiency.
Based on configured policies, Viascope SmartIP 2000 and SmartIP 500 can prevent unexpected network downtime caused by IP conflicts and outside attackers that have gained connectivity to a switch device or a Wi-Fi access point (in bridge mode)
ViaScope SmartIP is network access control solution which automatically prevents access from unauthorized devices and protects against the risks of network faults from unauthorized users with an integrated management policy.
[ Access Control Process ]
Multi-function solution that satisfies reliability, scalability and security requirements

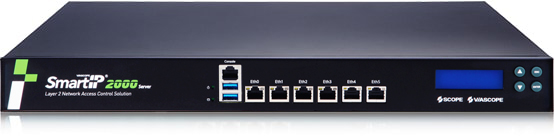

SmartIP 2000 is All-in-one solution that integrates Server, DBMS, DHCP server and Probe in a single device.
SmartIP 2000 ensures the network security and it provides a total view of IP resources distributed in the network with the comprehensive and easy to use WEB based user's interface.
SmartIP 2000's built-in Probe and DB server enable IT managers to collect, manage and control any IP devices in the network with just a few mouse clicks.
All-in-One Integrated Solution
[ Access Control Process ]
Network Diagram
Major Functions
ViaScope SmartIP Expected Effects (ROI)
  SmartIP 2000 (32bit) SmartIP 2000 (64bit)
CPU Intel Core2Duo 2.8Ghz Intel I5-4460 3.2GHz (Quad Core)
OS Linux Linux
Memory 4GB (2GB X 2) DDR3 RAM 8GB(4GB X 2) DDR3 RAM
Flash/HDD 500GB 1TB
Interface 4 x RJ-45 (10/100/1000Mbps)
Dual USB 2.0
6 x RJ-45 (10/100/1000Mbps) Posts
1 x RJ45 (to RS-232) Console Port
2 x USB 3.0
Size (mm) 438(W) x 292(D) x 44(H) mm 430 (W) x 330 (D) X 44 (H)
Weight 5.2Kg 5.0Kg
Operating Environment Temperature : 5℃~40℃, Humidity : 20%~90% Temperature : 0℃~40℃, Humidity : 10%~80%
Inout Voltage AC100V~240V, 50~60Hz AC100V~240V, 50~60Hz
Power 200W 250W
Trunk Protocol IEEE802.1q
FlatNetwork & Multi-VLAN Support
FlatNetwork & Multi-VLAN Support
DHCP Server Embedded Embedded
Database MariaDB MariaDB
Redundancy Support Yes Yes
※ Above H/W Specifications are subject to change without notice.
